Audi 4000 5000 coupe quantum Ignition Distributor 5 cyl 0237030009

Vendor: Audi
Type: Ignition Distributor
sold out!

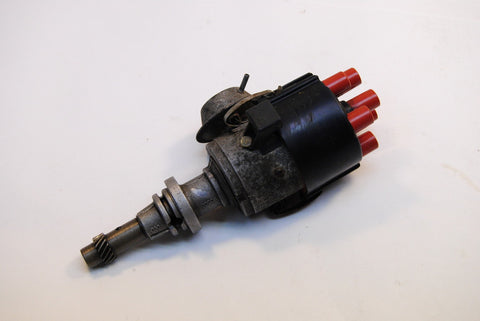

VW / Audi 5 cyl Distributor 034905205F BOSCH 0237030009 / 0 237 030 009

Up for sale is a Working, in excellent condition used VW 5 cyl distributor - removed from a recent crash damaged car. Fits the 5 cyl models - in the US . A faulty distributor is one of the most common (and more expensive to fix) no start problems with these cars. If the hall sensor inside the distributor fails or the connector is broken off of the distributor housing (common) this will cause no spark at the plugs (but you will have spark at the coil), as well as no ECU/fuel pump function. Another common "no-start / Non running" issue with these can be causes by failure of the plastic drive "pin". This can be noted viewing your distributor rotor when cranking the car, if it does not rotate or you can easily stop it from rotating with your hand, the drive pin has failed.BOSCH 0237030009 VW 034905205F


Vehicle Applicability:

01/1985-03/1987 AUDI 90 2.23 88kW/120PS Engine: KX

08/1985-03/1987 AUDI 90 quattro 2.2 89kW/121PS Engine: JT

08/1984-09/1986 AUDI 100 2.23 85kW/115PS Engine: KZ

08/1985-07/1986 AUDI 100 quattro 2.2 88kW/120PS Engine: PX

01/1985-07/88 AUDI Coupe 2.23 88kW/120PS Engine: KX

08/1985-12/87 AUDI Coupe quattro 2.2 89kW/121PS Engine: JT

08/1985-03/1988 VW Passat 2.23 88kW/120PS Engine: KX

08/1985-07/1988 VW Passat GT/GL Variant syncro 2.2 89kW/121PS Engine: JT

Reference numbers: 034905205F, 034-905-205-F, 034905205 F, 034 905 205 F 0237030009, 0-237-030-009, 0237 030 009, 0 237 030 009 0237030010, 0-237-030-010, 0237 030 010, 0 237 030 010 0237030021, 0-237-030-021, 0237 030 021, 0 237 030 021 Z514 <- Z515, Z514<-Z515AUDI4000 QUATTRO CS1986AUDI4000 QUATTRO S1985AUDI4000 S(1985 - 1986)AUDI5000 S(1985 - 1986)AUDICOUPE GT(1984 - 1985)VOLKSWAGENQUANTUM(1985 - 1986)VOLKSWAGENQUANTUM GL CUSTOM(1985 - 1986)

This is a good used unit, with all the common failure points inspected GOOD! Re manufactured distributors start at around $250 for one of the cheapest. In addition to hall sensor failures, these also commonly leak oil internally causing a burning smell as the drips burn off on the exhaust manifold which is directly underneath the distributor. This one was removed and runtested with my oscilloscope, functions properly. Though this is probably an original never rebuilt unit, it did not appear to have any oily residue inside the cap which means it should not leak internally. This comes with a 30 day functionality guarantee! Thanks for looking! I recommend replacing the distributor cap, rotor and external O-ring before installing this as these are all easily serviceable and cheap. The ones on the unit are there, but are used and are not guaranteed.Also, I know these cars well, and with this this type of distributor the connector itself can often times cause problems due to deterioration of the harness near the connector boot so be sure to check this as well.
